What Packaging Specifications and Carton Configurations Are Standard for Export 3D Ice Cream?

2026-10-15

Export novelty ice cream—predominantly manufactured as commercial 3D ice cream—centers on 65g to 75g unit weights packed across five distinct carton formats such as 75g by 12 sticks or 85g by 12 boxes, which dictate container packing density and retail freezer footprint. For international supermarket buyers and cold-chain distributors, selecting the proper master carton configurations is not simply an inventory decision. Because 3D sculpted frozen desserts feature delicate surface geometries, structural packaging configurations directly determine product integrity through maritime transit, pallet stowage in refrigerated containers, and stocking efficiency at store level.

How do piece weights and pack counts vary across 3D ice cream product lines?

Commercial 3D ice cream lines do not adhere to a single uniform unit weight. Because complex three-dimensional molds feature distinctive contours, curves, and relief angles, individual piece weights vary depending on mold volume and core formulation:

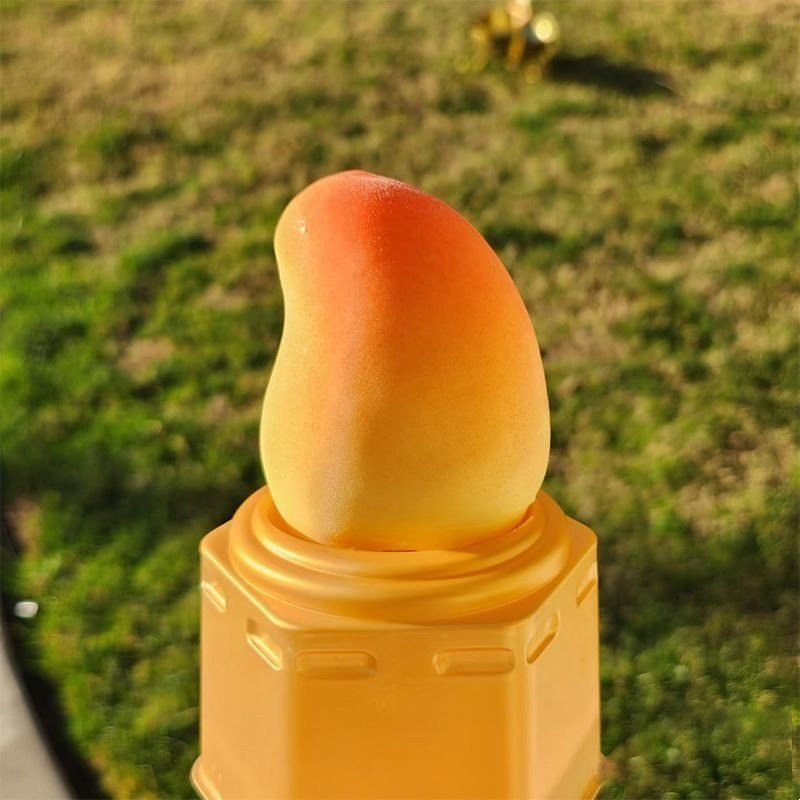

• Core 3D Fruit Profiles: Flagship sculpted items—such as 3D peach, 3D mango, and 3D lemon—standardize between 65g and 75g per unit. This range balances cryogenic freezing efficiency with an ideal single-serving handheld portion.
• Specialized Sculpted Novelties: Complex mechanical or layered shapes deviate from this median. Peelable banana ice cream items average approximately 55g per stick (commonly packed at 40 sticks per shipper), whereas composite jelly-core bars center at 70g.

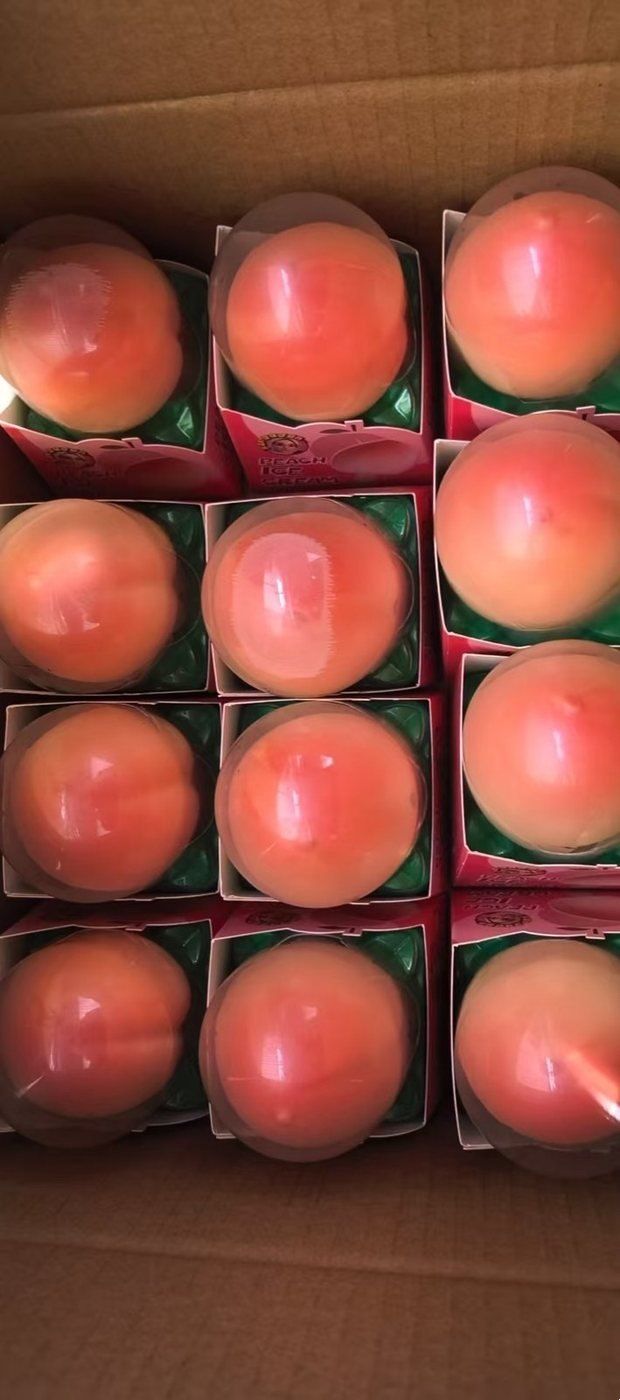

To protect realistic fruit rinds, fine textures, and protruding design elements from compressive transit stress, individual pieces cannot be packed loose in corrugated boxes. Production relies on primary packaging barriers: thermoformed blister shells, protective inner trays, or individual printed paperboard window boxes.

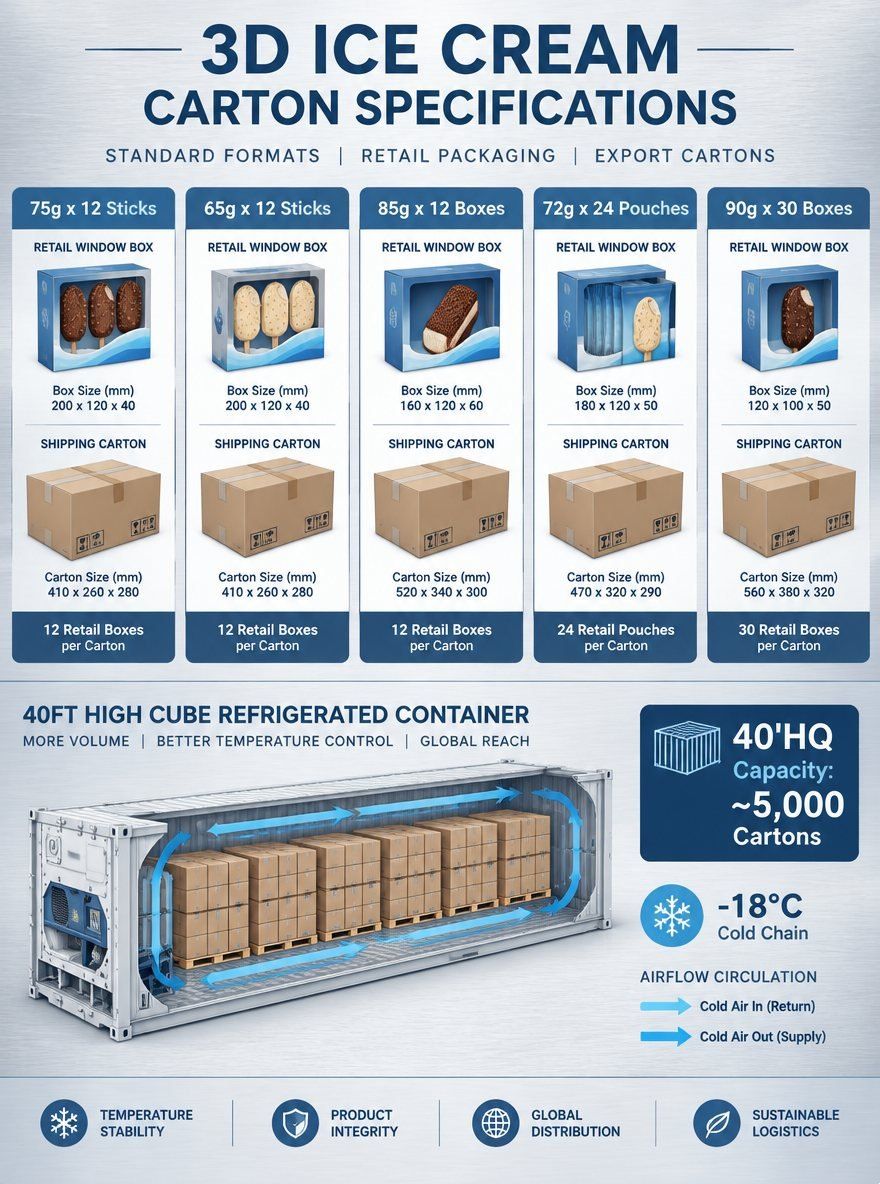

Industrial manufacturers organize international shipments around five verified master carton configurations:

Across North American and European grocery retail, the 12-box master case (1 individual retail box per unit, 12 boxes per master carton) represents the operational industry benchmark for 3D ice cream. This structure isolates each sculpted frozen shape from crushing weight while providing ready-to-scan retail facings.

What carton dimensions should US supermarket buyers use to calculate reefer container stowage for ice cream?

Ocean transport for export 3D ice cream relies on 40ft High Cube refrigerated containers (40'HQ reefer). Reefer containers include internal wall ducting and floor T-rails designed for continuous air circulation, which reduces net internal cubic capacity compared to standard dry shipping containers.

For standard export master cases (such as the 85g × 12 boxes format), a 40'HQ reefer accommodates approximately 5,000 master cartons under standard palletized configurations.

Calculating accurate container stowage requires evaluating three critical parameters:

• Carton Compressive Strength: Maritime shipping under constant sub-zero refrigeration creates condensation cycles that degrade low-grade corrugate. Commercial export operations, such as those maintained by Hicey, the ice cream brand of Beijing Youshare Food Co., Ltd., utilize reinforced double-wall corrugated master shippers engineered to resist carton deformation during long-distance maritime transit.
• Airflow Boundary Clearances: Pallet tiers cannot exceed the ceiling red load line marked inside the reefer. Obstructing ceiling return channels disrupts the cold airflow required to maintain the compulsory -18°C (-0.4°F) product core temperature.
• Pallet Stowage Patterns: When consolidating mixed 3D ice cream orders, blending 12-count boxes with 24-count pouches creates differing carton footprints. Buyers must verify tier patterns (tie-and-tier interlocking) to ensure pallet load stability throughout port transfers.

How do master carton configurations impact retail cold-chain management?

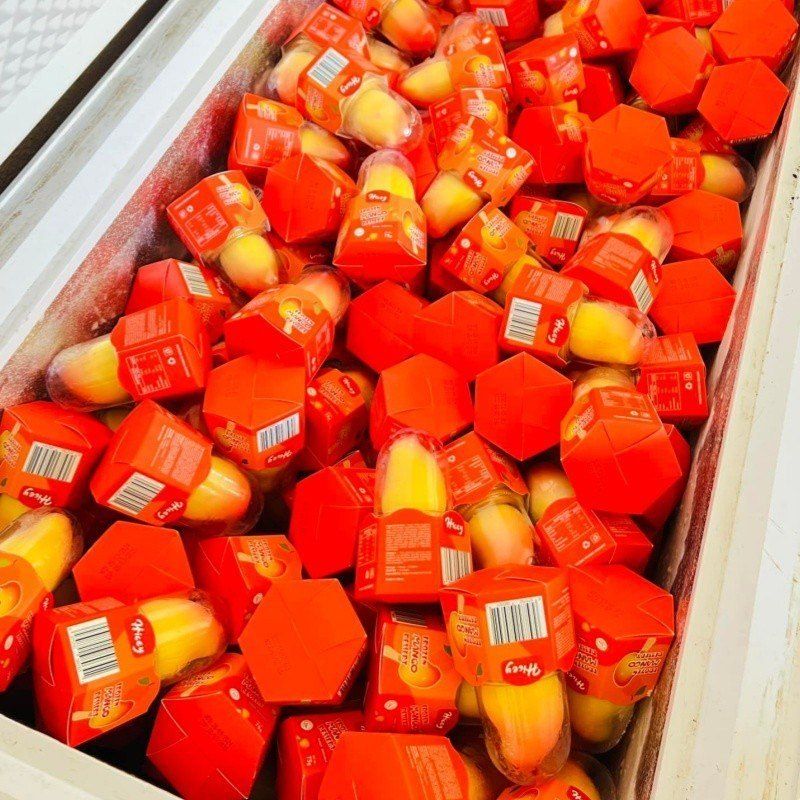

In supermarket and convenience chains, upright freezer shelf space is strictly controlled. The 12-pack master carton offers operational advantages over heavy bulk packs:

• Prevention of Thermal Shock: Twelve-unit cartons allow store staff to replenish retail shelves in single quick batches directly from backroom walk-in freezers. Minimizing dwell time in ambient room temperatures prevents surface micro-melting and textural recrystallization.
• Barcode and Label Compliance: Individual unit boxes safeguard 3D ice cream details while displaying bilingual nutrition facts, FDA-compliant ingredient panels, and GS1 UPC barcodes cleanly positioned for point-of-sale scanning.

Key facts

• Commercial 3D ice cream unit weights center between 65g and 75g, with peelable banana variants at 55g and jelly bars at 70g.
• Five standard master carton formats govern export programs: 75g × 12 sticks, 65g × 12 sticks, 85g × 12 boxes, 72g × 24 pouches, and 90g × 30 boxes.
• A 40ft High Cube refrigerated container accommodates approximately 5,000 master cartons under standard 12-box master pack specifications.
• Custom packaging, multilingual labeling, and GS1 barcode integration typically start at a minimum order quantity of 600 cartons, whereas contract OEM/ODM production starts at 1,000 cartons.

FAQ

Can different 3D ice cream items share the same master carton footprint in a consolidated container? Yes. Molded 3D ice cream lines engineered within the 65g to 75g bracket utilize uniform master carton footprints, enabling buyers to consolidate diverse varieties—such as 3D peach, mango, and melon—on standardized pallet tiers.

Why is a 12-count carton preferred over 24- or 48-count shippers for 3D ice cream? The 12-count case maintains total carton gross weight between 1.2kg and 1.8kg. This light payload prevents bottom-box deformation under freezing humidity and matches weekly retail restocking cycles.

How do buyers verify master carton stackability prior to shipment? Suppliers supply pallet layout schematics, individual carton dimensions, and gross weights alongside proforma documentation, allowing logistics planners to verify container axle weight limits and tier stability before production runs.

Shared by the cross-border fulfillment team at Hicey, the export brand of Beijing Youshare Food Co., Ltd. We provide 3D molded ice cream solutions with clear operational benchmarks, including an estimated 20-working-day production schedule once orders are confirmed. Inquiries and technical questions are always welcome in the comments.
